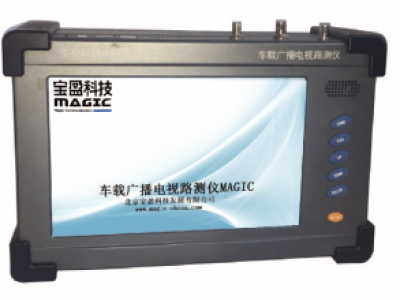

MAGIC-2017 car radio and television road test system.

  • No.:MAGIC-2017
  • supplier :magic-china
  • The price:negotiable

MAGIC-2017 car radio and television road test system.


AGIC - 2017 portable car radio and TV system is designed for radio, film and tailor the launch and monitoring departments, can meet the relevant professionals to am radio, FM radio, analog and digital TV testing needs. Compared with traditional signal measurement methods, this system has the characteristics of rich sampling points, high system integration, high degree of automation and simple operation. During the test, the operator does not need to switch the test frequency point. No parking is required to set up the test antenna. All test data are automatically obtained and saved according to the preset conditions. System is equipped with professional data analysis software, can be dealt with according to the result of test data analysis, and will result in a wide variety of ICONS, according to the way and then from the Angle of subjective and objective situation to build understanding of the test.


Technical parameters


Frequency range:                 500 KHZ to 1.3 GHz


Input power range:              - 125 DBM to + 20 DBM


Built-in attenuator adjustable range.:              50 db


Absolute measurement accuracy:               Plus or minus 1.5 dB


Frequency resolution:               1 KHZ


Tuning resolution:                1 hz


Spectral scanning rate:              200 MHZ/s, 25 KRBW


Intermediate frequency rejection ratio:               90 db or higher


Mirror frequency rejection ratio:               90 db or higher


Video signal encoding format.:               H.264 MPEG2 MPEG4 AVS+ (optional)


Video signal resolution.:               576 I, 720 p 1080 I


Audio signal encoding format.:               MPEG1 MPEG2 HE - ACC


Television signal format.:               PAL, NTSC SECAM


display:               10 inch


Rf input:               50 Ω


Data interface:               Ethernet * 2 * 6 USB


Product specification:               Size: 380 mm * 210 mm * 160 mm                Weight: 6.3 kg


The work environment:               Temperature: 0 ° C ~ 45 ° C                Humidity: 90% do not show dew.
