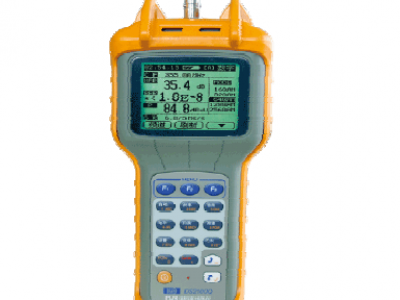

Performance:

* more accurate QAM performance index detection and analysis -- average power, MER, BER (before/after), constellation.

* faster spectrum analysis function and power measurement, real and fast reflection of the actual situation of the channel.

* longer working hours, built-in high-capacity lithium battery, more than 5 hours of continuous boot work, can take the charger for a long time.

* provide the qualified judgment function of digital TV indicators, and the test is simple and convenient.

* provide network interface.

* support multiple DVB modes: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM.

* QPSK COFDM power detection.

* positive and reverse system detection.

* digital TV indicator and comprehensive analog TV indicator (level, V/A, slope, limit) automatic detection function.

* high definition and ultra-wide temperature of FSTN liquid crystal band 4 gray scale display, have good visual effect.

frequency

Frequency range                                  5 MHZ to 870 MHZ

precision                                              Plus or minus 50 x 106 (20 ℃ + / - 5 ℃)

The resolution of the                           10 KHz

Receive bandwidth                               280 KHz

Analog television signal

Level range                                            30 db u V ~ 120 db u V

precision                                                Plus or minus 1.5 dB

The resolution of the                             0.1 dB

The input impedance                             75 Ω

Digital television signal

Power level range.                                 30 db u V ~ 110 db u V

precision                                                Plus or minus 2.0 dB

The resolution of the                             0.1 dB

Standard modulation form                    ITUT j. 83 Annex A standard, 64QAM, 256 QAM.

Power support                                       QAM, QPSK, COFDM, etc.

Symbol rate                                            Ms/S 4 ~ 7 ms/S

Note: the antenna can be applied to the horizontal polarization wave and the vertical polarization wave of the 40MHz ~ 1000MHz band.
