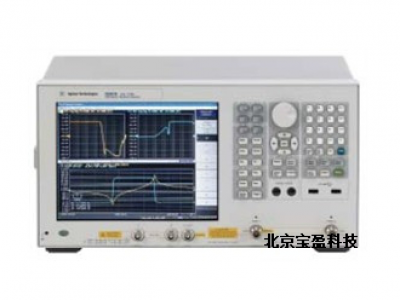

The vector network analyzer can satisfy the wide range of low frequency to high frequency electronic components and circuit measurement requirements. The new 5 Hz - 3 GHz frequency domain device analysis standard can be provided. It can be widely used in wireless communication, radio and television transmission, electronic automation, medical and aerospace defense. The frequency range is up to 5Hz~3GHz.

Technical performance index

The standard version

Frequency range 100 kHz to 1.5ghz (option 115/215/117/217) 100 kHz to 3 GHz (option 135/235/137/237)

Signal output - 45 to +10 dBm (at 300 kHz to 1.5/3 GHz)

- 45 to +5 dBm (at 100 kHz to 300 kHz)

Dynamic range >120 dB (at 1 MHz to 1.5/3 GHz, IFBW = 10 Hz)

Tracking noise 5mdBrms (IFBW=3kHz)

Test port transfer/reflection test (optional), S terminal test port (optional)

75 Ω test ports have (optional)

1 m Ω input without

Power detection

Dc offset source is not available.

Impedance analysis is not available.

Frequency stability plus or minus 7 PPM + 1 mHz (standard), plus or minus 1 PPM

Time domain fault location has (requires time threshold and return loss analysis option)

Channel/trace number 4 channel /4 trace line.

Test points 1601.

Calibration capability response, all 1 ports, all 2 ports, automatic external port calibration (using radio frequency 2 port Ecal module, frequency > 300kHz), remove the adapter.

Data analysis and processing equation editor, VBA become, threshold test, virtual part conversion.

pro

Frequency range 5Hz~3GHz.

Signal output -45 to +10 dBm (at 5 Hz to 3 GHz)

Dynamic range >120 dB (at 1 MHz to 3 GHz, IFBW = 10 Hz)

Tracking noise 5 mdBrms (IFBW=3 kHz/Auto)

Test port S parameter test port (5 Hz to 3 GHz), plus.

No 75 Ω test port

1 M Ω input (gain phase test port, 1 M Ω / / 30 pF)

Power detection

Dc offset sources (0 to + 40 Vdc, Max. 100mA dc)

Impedance analysis (optional)

Frequency stability plus or minus 7 PPM + 1 mHz (standard), plus or minus 1 PPM

Time domain fault location has (requires time threshold and return loss analysis option)

Channel/trace number 4 channel /4 trace line.

Test points 1601.

Calibration capability response, all 1 ports, all 2 ports, automatic external port calibration (using radio frequency 2 port Ecal module, frequency > 300kHz), remove the adapter.

Data analysis and processing equation editor, VBA become, threshold test, virtual part conversion.
